DL-28-5 Pin Industrial Circular Plastic Waterproof Plug Power Connector
The All-Plastic 'Little Giant': Powering High Currents, Big Performance
Video
Product Size
Pin
IP Rating
Rated Current
Rated Voltage
Product Series
Wiring Type
Interface Type
Mating Cycles
Plastic Plug
Plastic socket+ Plug
Plastic socket

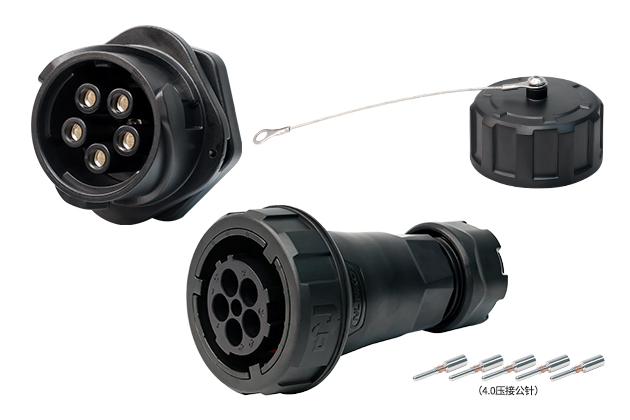

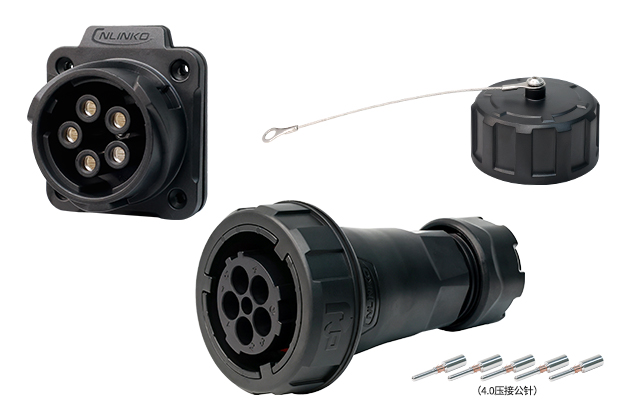

5 Pin Black Shell In-line Receptacle Formal Kit With Crimping

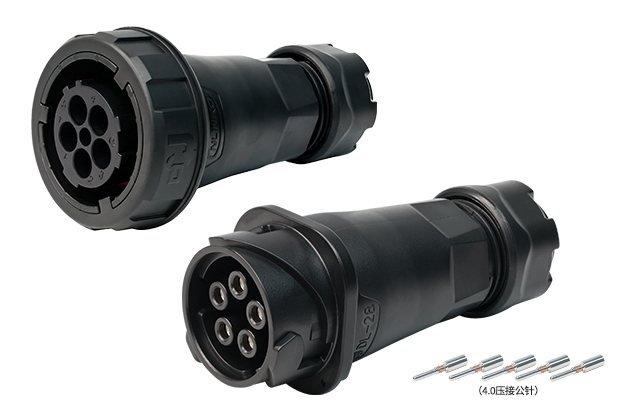

5 Pin Black Shell Formal Kit With Crimping

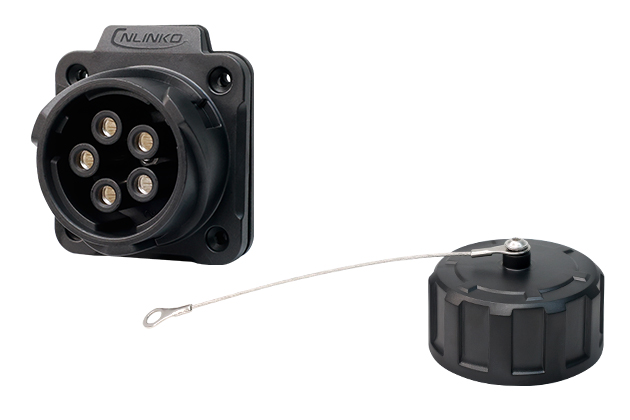

5 Pin Four Holes Flange Formal Kit With Crimping

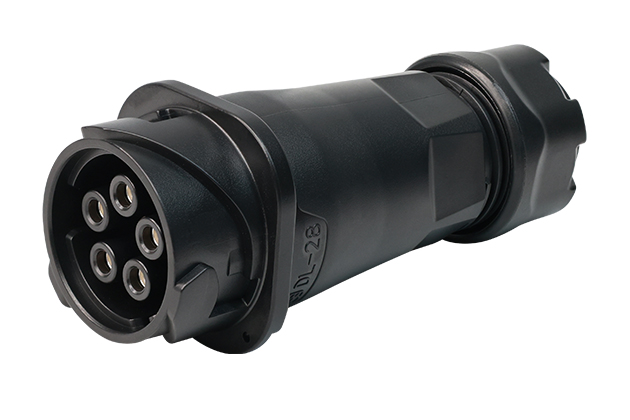

5 Pin Black Shell Male Plug

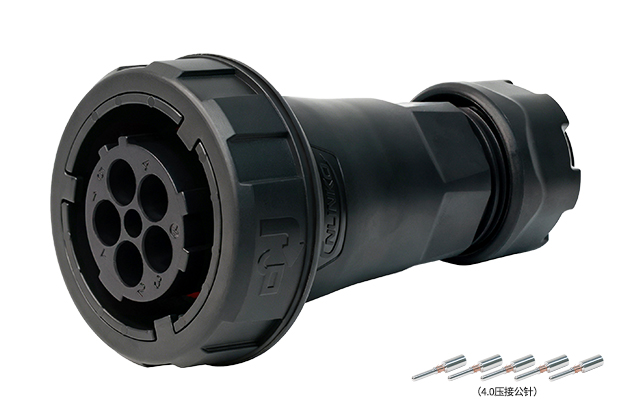

5 Pin Black Shell Female In-line Receptacle
5 Pin Black Shell Singal Hole Female Socket
5 Pin Four Holes Flange Female Socket
Born for corrosion resistance, a powerful performer for corrosive environments
CNLINKO’s DL28 Series high-current connectors are compact industrial waterproof connectors designed for high-power equipment. Built to the M28 form factor, they support currents up to 50A while being nearly 50% smaller than IEC 60309 plugs and offering twice the current capacity. They are ideal for space-constrained applications such as power distribution boxes, energy storage systems, and solar inverters.
The dual-locking mechanism—combining a twist-lock bayonet with a retaining collar—prevents accidental disconnection in high-vibration environments. A finger-safe design passes standard finger-probe safety testing to reduce the risk of accidental contact. Front-face and side sealing provide both IP68 and IPX9K protection, while the housing offers UL 94 V-0 flame resistance, F1-rated UV resistance, and reliable performance across a wide temperature range.
The DL28 Series is protected by six patents, certified by TÜV, UL, and CE, and recognized with both the German iF Design Award and the U.S. IDEA Design Award.
The New Trend of High Current with small size Connections, An Ideal Alternative to IEC 60309
Compared with conventional IEC 60309 , the DL28 series offers double the current, while its external dimensions are nearly 50% smaller, giving it a greater advantage in small space installations.
New anti-loosening outer ring structure, "Double insurance" for enhanced stability
Using screw bayonet connection, the new anti-loosening outer ring structure achieves "double insurance" for more secure locking and firmly prevents loosening.
Big Size with High Energy Excellent Choice for High-current Transmission
With a large M28 size, the DL28 connector is suitable for designing contacts and female pins with bigger sizes, satisfying users’ requirements for high-current and high-power transmission
Anti-electric shock design to eliminate potential hazards
Anti-electrocution design prevents accidental contact with copper conductors and reduces the risk of electric shock.
IPX9K
Dual-locking mechanism
Corrosion-resistant design
Insulation resistance ≥500MΩ
