CNLINKO will exhibit at electronica 2026 in Munich, Germany, from November 10–13, 2026, at Booth B3-121.
Focusing on equipment miniaturization, faster installation and maintenance, and reliable operation in demanding environments, CNLINKO will showcase power, signal, data, hybrid connectors, and cable assemblies. The exhibit will highlight three new directions in industrial connectivity:More connections in less space, Faster connection with secure long-term locking, Comprehensive reliability beyond IP ratings.
Customers developing new equipment, upgrading interfaces, or selecting industrial circular connectors can visit CNLINKO to learn how connectors can support equipment design, assembly efficiency, and long-term operational reliability—not just basic power or signal transmission.
1. How Do Compact Industrial Connectors Address Space Constraints?
Industrial equipment continues to become smaller, more powerful, and more highly integrated, while the number of power, signal, data, and I/O interfaces continues to grow. Too many separate connectors can consume valuable panel space and complicate cutouts, wiring, assembly, and maintenance.
To address these challenges, CNLINKO will present hybrid connectivity, compact high-current connectors, and 90-degree cable-exit solutions.
Hybrid Connectivity Reduces Interface Count
CNLINKO integrates multiple power circuits or power and signal contacts into a single connector, replacing multiple separate interfaces. This helps reduce connector count and panel cutouts while simplifying internal wiring.
Hybrid connectors are particularly suitable for equipment with limited installation space, multiple interface requirements, or the need to transmit power and control signals through one connection point.
Compact Design Increases Power Density
The CNLINKO DL28 Series high-current connector features a compact design that is nearly 50% smaller than conventional IEC 60309 plugs while supporting up to 50 A in limited installation space.
For medium- and high-power applications such as power distribution boxes, injection molding machines, robotic arms, and energy storage equipment, the DL28 Series industrial circular connector reduces interface footprint while providing high-current transmission, environmental protection, and secure locking.

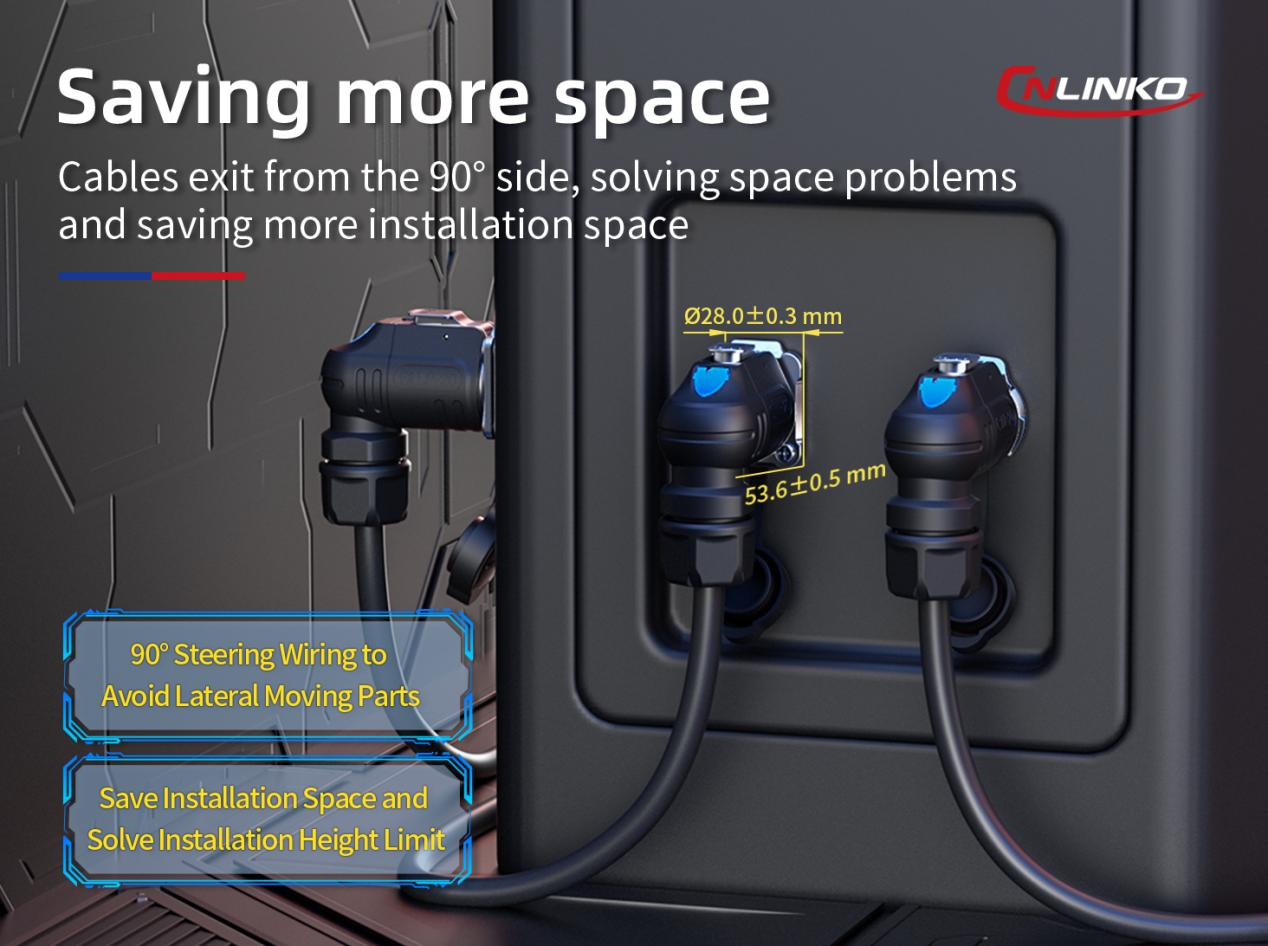

90-Degree Design Optimizes Cable Routing
In control cabinets, robotic systems, and other compact equipment, straight connectors may interfere with housings or nearby components. CNLINKO’s 90-degree connector solutions redirect the cable exit, reduce rear clearance requirements, and help prevent excessive cable bending.
A compact industrial connector is not simply a smaller connector. Proper selection must account for rated current, interface count, panel space, cable routing, and future maintenance requirements.
2. How Can Quick-Connect Connectors Deliver Both Speed and Secure Locking?
Connectors used in automation systems, modular equipment, and frequently serviced applications may be connected and disconnected repeatedly. Quick-connect designs improve installation and maintenance efficiency, but inadequate locking can allow vibration, impact, or cable pull to loosen the interface, potentially causing intermittent disconnection, signal errors, or equipment downtime.
For this reason, an industrial quick-connect connector must do more than connect quickly—it must remain securely locked after connection.
One-Handed Connection with Spring Locking
CNLINKO LP Series and BD Series industrial waterproof connectors combine quick-release mechanisms with spring-locking structures. They can be connected and disconnected with one hand while maintaining a secure connection between the plug and receptacle.
BD Series industrial circular plugs and receptacles feature a recessed push-button design for a more compact installation, making them suitable for equipment with dense interfaces or limited panel space.
Secondary Locking Reduces Accidental Release
The CNLINKO DK24 Series dual-lock quick-connect connector adds a secondary locking ring to the quick-connect mechanism. This improves resistance to vibration, loosening, and accidental release, making it suitable for mobile equipment, vibrating machinery, and frequently serviced systems.
Dual Locking Improves High-Current Connection Safety
The DL28 Series high-current connector uses a dual-locking design that combines bayonet locking with an anti-backoff collar. This helps reduce the risk of loosening caused by equipment vibration or continuous pulling from large-gauge cables.
When selecting a quick-connect industrial circular connector, engineers should evaluate maintenance frequency, vibration levels, cable weight, mating cycles, and retention force—not connection speed alone.
3. Why Should Industrial Waterproof Connector Selection Go Beyond the IP Rating?
The reliability of an industrial waterproof connector cannot be determined by its IP rating alone.
In real-world industrial applications, connectors may be exposed to deep-water immersion, high-temperature and high-pressure washdown, dust, temperature fluctuations, salt spray, vibration, impact, and repeated mating cycles. Even when a connector passes its initial waterproof test, its sealing, locking, and electrical performance must remain stable throughout long-term use.

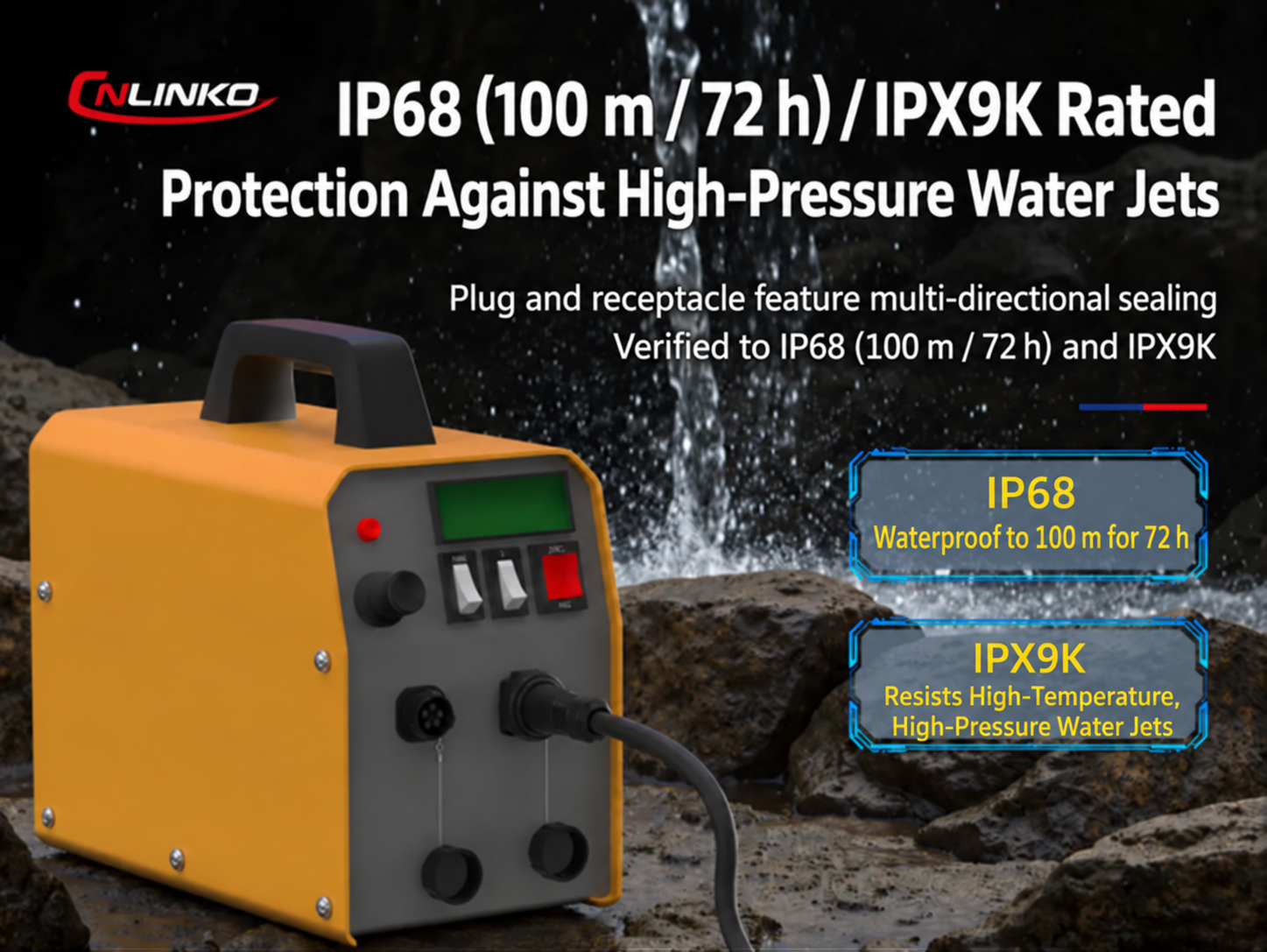

IP68 and IPX9K Address Different Water-Exposure Risks
IP68 evaluates protection against continuous immersion under specified test conditions, while IPX9K verifies resistance to high-temperature, high-pressure water jets. The two ratings address different operating environments.
Multiple CNLINKO industrial waterproof connectors meet both IP68 and IPX9K requirements. The DL28 Series high-current connector, for example, achieves IP68 protection at a water depth of 100 meters for 72 hours, as well as IPX9K protection.
Certain receptacle configurations can also provide standalone IP68/IPX9K protection when unmated. This supports applications involving deep water, high-pressure washdown, or exposed equipment-side interfaces.
Actual product selection should still be based on the specific model, mated or unmated condition, installation method, and operating environment.
Airtight Connectors Help Control Gas Leakage
Some equipment must prevent not only water and dust ingress but also gas leakage or pressure loss. In these cases, a standard waterproof connector cannot fully replace an airtight connector.
The airtight version of the CNLINKO LP Series shows no leakage under a test pressure of 500 kPa. It supports equipment requiring high levels of airtightness, pressure retention, and sealing reliability.
Systematic Testing Verifies Long-Term Reliability
CNLINKO operates UL- and TÜV-authorized witness testing laboratories capable of conducting tests for:Water and dust ingress protection、Mating-cycle durability、Insertion, withdrawal, and retention force、Vibration and mechanical shock、Micro-interruption、Contact resistance、Conductor temperature rise、High- and low-temperature performance、Thermal shock、Salt spray corrosion
These tests help identify risks such as water ingress, seal degradation, mechanical loosening, intermittent disconnection, increased contact resistance, and abnormal temperature rise. They provide test-based evidence for the long-term use of industrial waterproof and circular connectors under demanding operating conditions.
4. What Connection Requirements Can Be Discussed at CNLINKO Booth B3-121?
Whether you are developing new equipment, upgrading an existing interface, or selecting industrial waterproof connectors, circular connectors, or cable assemblies, you are welcome to meet with the CNLINKO team at Booth B3-121.
For a more productive discussion, consider bringing the following information:
Required transmission type: power, signal, data, or hybrid
Rated current, voltage, contact count, and wire size
Panel cutout, available installation space, and cable-exit direction
Water-depth, high-pressure washdown, temperature, salt-spray, or airtightness requirements
Vibration, impact, and mating-frequency conditions
Termination method and cable-assembly requirements
This information will help the technical team evaluate connector size, electrical specifications, locking method, mounting structure, and environmental protection requirements.
5. Frequently Asked Questions About Industrial Waterproof Connector Selection
Is IP68 Always Better Than IP67 for Industrial Equipment?
Not necessarily. The appropriate protection rating depends on the actual operating environment.
If equipment is exposed only to temporary rain and dust, deep-water protection may not be necessary. For continuous immersion, high-temperature and high-pressure washdown, or unmated interface exposure, engineers should also confirm test depth, test duration, IPX9K performance, and standalone receptacle protection.
Can Quick-Connect Connectors Be Used on Vibrating Equipment?
Yes, provided that the locking structure, retention force, and vibration-test performance are suitable for the application.
For highly vibrating or mobile equipment, spring locking, dual locking, and anti-backoff structures should be prioritized. Vibration, mechanical shock, and micro-interruption testing can further verify connection stability.
How Can Engineers Determine Whether a Connector Is Suitable for Continuous High-Current Operation?
Rated current alone is not enough.
Engineers should also evaluate wire size, ambient temperature, contact resistance, conductor temperature rise, termination quality, and heat dissipation. A current rating on a datasheet cannot replace actual load and temperature-rise verification.
Event Information
Event: electronica 2026
Dates: November 10–13, 2026
Venue: Trade Fair Center Messe München, Germany
CNLINKO Booth: B3-121
From November 10–13, CNLINKO will welcome engineers, equipment manufacturers, procurement professionals, and business partners at Booth B3-121 to discuss more compact, efficient, and reliable industrial connectivity solutions.
