Abnormal temperature rise in high-current connectors is a common cause of equipment failures. It can lead to many serious hazards. Do you know? How should users select low-temperature-rise high-current connectors?
High-Current Connectors: The Hazards of Excessive Temperature Rise
High temperature rise is a nightmare for high-current connectors. Its resulting hazards cannot be ignored.
1. Safety Hazards
①Fire risk: When temperature rise exceeds limits, plastic housing may reach ignition point;
② Insulation failure: Every 8-10°C temperature increase significantly shortens insulation material lifespan;
③ Arc hazard: High temperatures accelerate contact surface oxidation, causing contact resistance to rise in a vicious cycle.
2. Economic Losses
①Increased energy consumption: For a 100A connector, every 1mΩ increase in contact resistance causes significant annual energy loss;
② Maintenance costs: Expenses for replacing connectors due to temperature rise issues are substantial;
③ Downtime losses: Economic losses from equipment shutdowns caused by connector overheating.
Follow These 3 Points: Choose the Right Low-Temperature-Rise High-Current Connector
1. Examine Conductor Material
High-current connectors primarily use copper alloy as the base material for contacts. However, different compositions yield varying temperature rise performance. Users should prioritize copper alloys with superior temperature rise characteristics while ensuring current rating compliance.
2. Examine Contact Structure Design
① Multi-contact designs yield lower temperature rise than single-contact designs;
② Elastic compensation: Contacts should have sufficient elastic pressure to ensure larger effective contact area;
③ Surface treatment: Gold or silver plating stabilizes contact structure/performance and temperature rise.
3. Physical Testing Verification
Simple practical methods to verify temperature rise performance:
①Infrared inspection after 4 hours of full-load operation;
② Use infrared thermal imager to scan connection points. If temperature rise exceeds standards, the connector is non-compliant.
CNLINKO High-Current Connectors: The Choice for High-Current Transmission

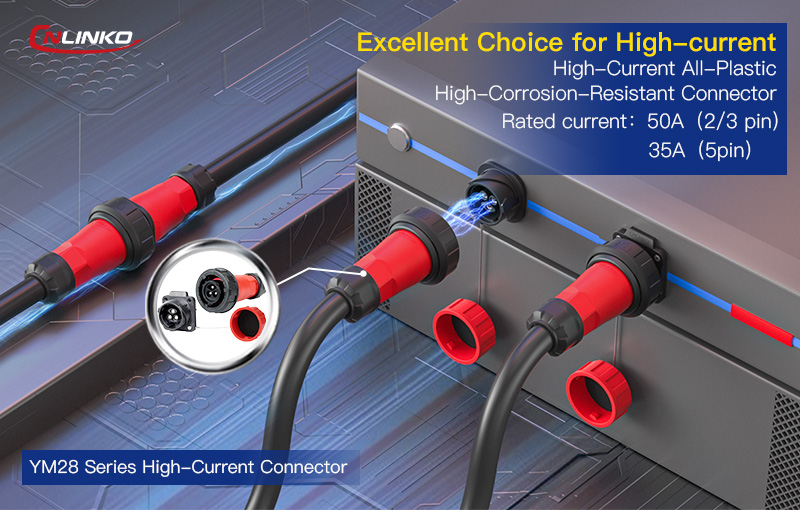

CNLINKO's YM28 series industrial connector delivers high corrosion resistance with 50A (2/3-pin) and 35A (5-pin) current ratings.
1. Temperature Rise <30K: Safer High-Current Transmission
Operating within rated temperature range, CNLINKO YM28 connectors maintain <30K temperature rise, ensuring safe current transmission without overheating.
2.Scientific Material Selection & Optimized Design for Low Temperature Rise
① Base material: Premium copper alloy minimizes temperature rise variation; ② Plating: Nickel underlayer + silver plating reduces long-term wear and stabilizes resistance;
③ Rigid pin + slotted socket contact structure maximizes effective contact area, preventing localized overheating.
3. Superior Overall Performance: The Truly Excellent High-Current Connector
① Full plastic SABIC housing: Exceptional corrosion resistance;
② Bayonet locking + anti-rotation collar: Secure connection, prevents loosening;
③ Flexible cable clamp: Protects cables against bending damage;
④ IP68/IPX9K protection: True flagship configuration;
⑤ Temperature resistance (-25°C~+80°C), flame retardancy (UL94 V-0), UV resistance.
If you need industrial-grade, high-reliability high-current connectors, contact us! We also offer customization for higher currents (e.g., 100A)!
