How to Solve Rising Temperature Issues in High-Current Connectors? An Analysis of the DL28 Connector's Low-Temperature Performance
Why are DL28 connector born?
Excessive temperature rise is a critical challenge for high-current connectors. Prolonged operation under high temperatures can lead to insulation failure, premature product retirement, and even fire hazards. Given the significance of temperature management, how can low-temperature performance be achieved in high-current connectors?Excellent temperature performance is a key indicator of the reliability and safety of high-current connectors and should not be overlooked. So, how do industrial-grade high-current connectors ensure low-temperature operation?
Fundamentals of Low-Temperature Performance in High-Current Connectors
1. High-Conductivity Materials and Structural Optimization
① High-Conductivity Contact Materials: Using high-conductivity copper alloys as the primary material for pins and sockets is essential for achieving low contact resistance.
② Optimized Contact Structure: Single-point contact can easily cause localized overheating. A multi-point contact design enables current sharing, ensuring more uniform temperature distribution and preventing localized hot spots.
③ Appropriate Contact Force: Insufficient contact pressure between pins and sockets can lead to unstable connections and increased resistance, while excessive pressure may accelerate material creep and wear.
2. Precision Plating Process
Common plating methods for contacts include gold or silver plating. For large-diameter pins, silver plating is often preferred. Key aspects of plating quality include:
① Uniform Thickness: Prevents localized overheating or arc breakdown caused by uneven plating.
② Low Porosity: High porosity reduces corrosion resistance and increases resistance.
③ Strong Adhesion: Ensures the plating does not easily peel off, preventing contact failure.
Outstanding Low-Temperature Performance of the DL28 Series Connector

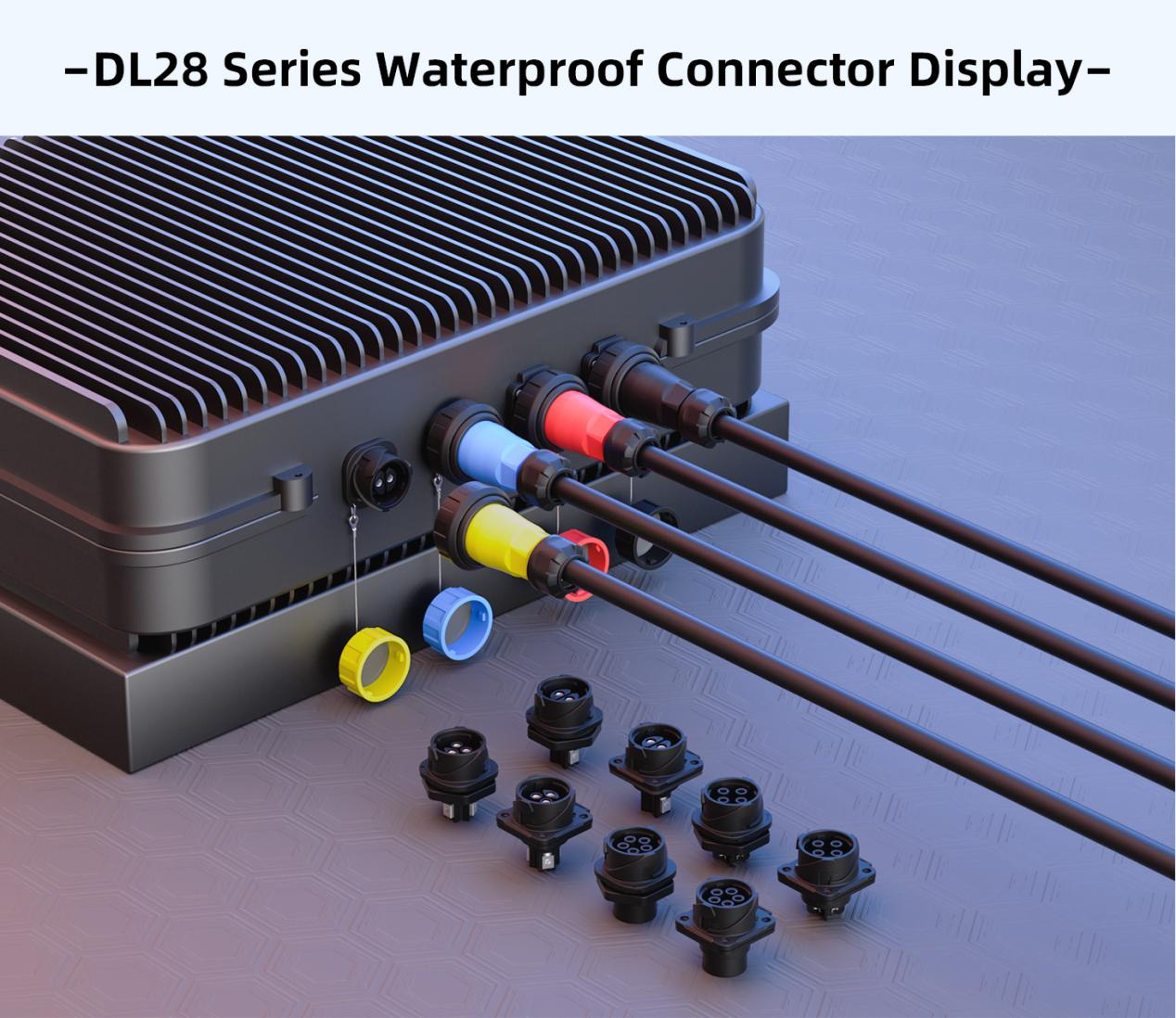

As a top-tier high-current connector, the CNLINKO DL28 series industrial connector reduces size by nearly 50% compared to traditional IEC60309 plugs while doubling current-carrying capacity. It is an ideal connectivity solution for compact spaces and small-sized devices.
One of its core advantages lies in its exceptional low-temperature performance, ensuring high reliability and safety during long-term, high-current transmission.
1. Exceptional Low-Temperature Performance
The DL28 series maintains an excellent maximum temperature rise of ≤50K, with specific performance as follows:
Cable-Clamp & Crimp Versions: At 35A current, the maximum temperature rise is ≤30K; at 50A current, the maximum temperature rise is ≤50K.
Solder Version: At 50A current, the maximum temperature rise is ≤30K; at 60A current, the maximum temperature rise is ≤50K.
2. Technical Assurance for Superior Low-Temperature Performance
The DL28 series industrial connector employs the following technical measures to ensure low-temperature operation:
① High-Conductivity Copper Alloy Materials:
Cable-Clamp/Crimp Versions: Use brass.
Solder Version: Use red copper, which offers superior conductivity.
② Optimized Contact Structure:
The connector features a rigid pin paired with a slotted socket, ensuring reliable multi-point contact. This design not only distributes temperature more evenly but also provides stable and appropriate contact pressure.
③ Advanced Plating Process:
The connector utilizes a nickel-undercoated silver plating process, combined with advanced electroplating technology, to ensure:
Strong adhesion between the base material and the plating layer.
Uniform plating thickness.
Extremely low porosity.
These features significantly reduce contact resistance and the risk of temperature rise.
If you are looking for a compact high-current connector, the DL28 connector is a confident choice. It combines multiple advantages, including small size, high current capacity, enhanced safety, reliability, and low-temperature performance, making it an exceptionally powerful solution.
