DK-24 3 Pin Gold-plated Waterproof Circular Connector Aviation Plug
One-Hand quick plug, Dual-Lock Secure connection
Product Size
M24
Pin
3 Pin
IP Rating
IP68 / IPX9K
Rated Current
20A
Rated Voltage
500V
Product Series
Wiring Type
Soldering
Interface Type
Pin
Mating Cycles
≥2000 times
Complies with product certification:
UL
TUV
CQC
CE
RoHS
REACH
System certification:
IATF 16949
ISO 13485
ISO 9001
ISO 14001
ISO 50001
ISO 45001
Specifications
Part Number:DK-24-C03PE-02-002 / DK-24-C03SX-02-402 Copy
Part Number:DK-24-J03PE-02-002 / DK-24-J03SX-02-402 Copy
Part Number:DK-24-C03PE-02-002 / DK-24-J03PP-02-002 Copy
Part Number:DK-24-J03PE-02-002 / DK-24-C03PP-02-002 Copy

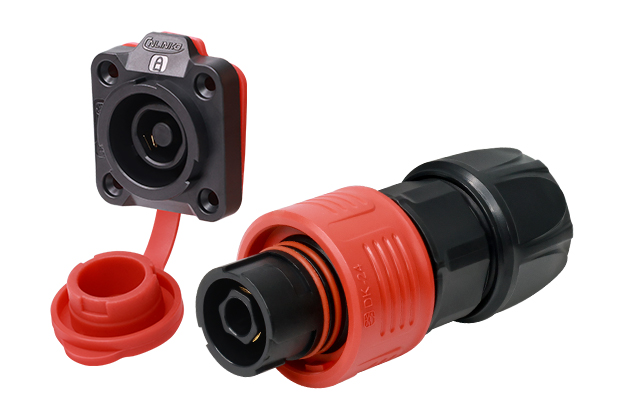

DK-24 3 Pin Gold-plated Flange Formal Kits

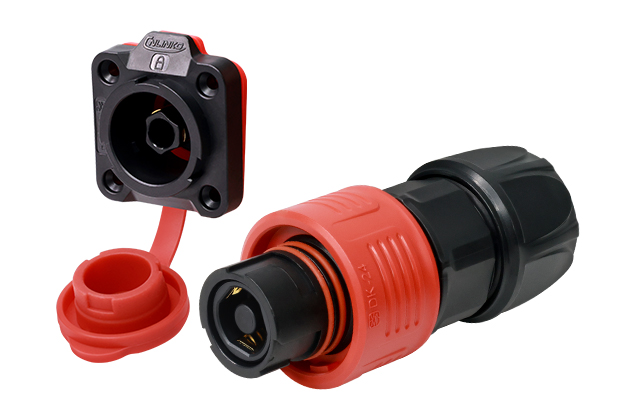

DK-24 3 Pin Gold-plated Flange Assemble Backwards

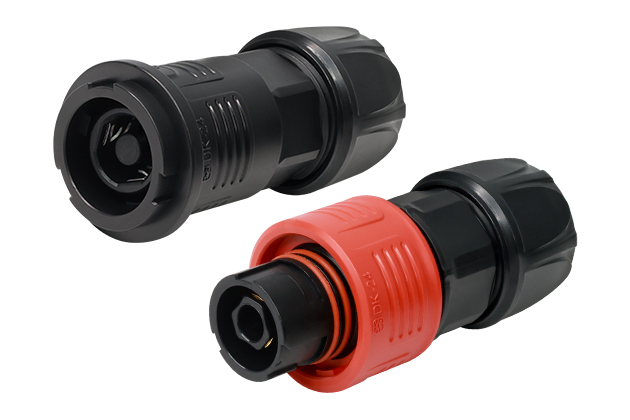

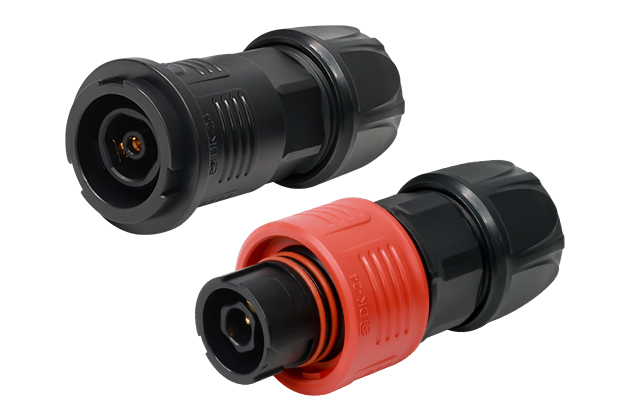

DK-24 3 Pin Gold-plated In-line Receptacle Formal Kit

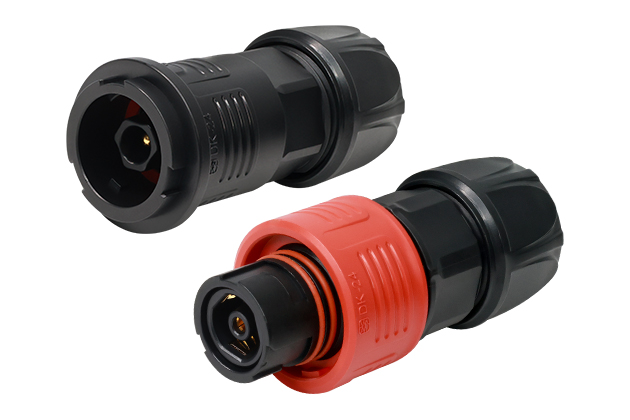

DK-24 3 Pin In-line Receptacle Assemble Backwards
DK24 Series Click-Type Dual-Lock Connector
Product Advantages
Dhoose the right contact plating for different operating requirements
Spring clip fit, stable conductivity
Reduces instability caused by contact gaps
2,000+ Mating cycles Built for Durability
Reliable in high-cycle mating applications over long-term use
Industrial-Grade Reliability for Demanding Environments
Designed to perform reliably in moisture, temperature variation outdoor exposure and corrosive conditions.
Multiple protection features ensure stable long-term connection performance.
Dual sealing for More Reliable Protection
Front sealing + side sealing
Forms a stable sealing barrier after locking for enhanced protection

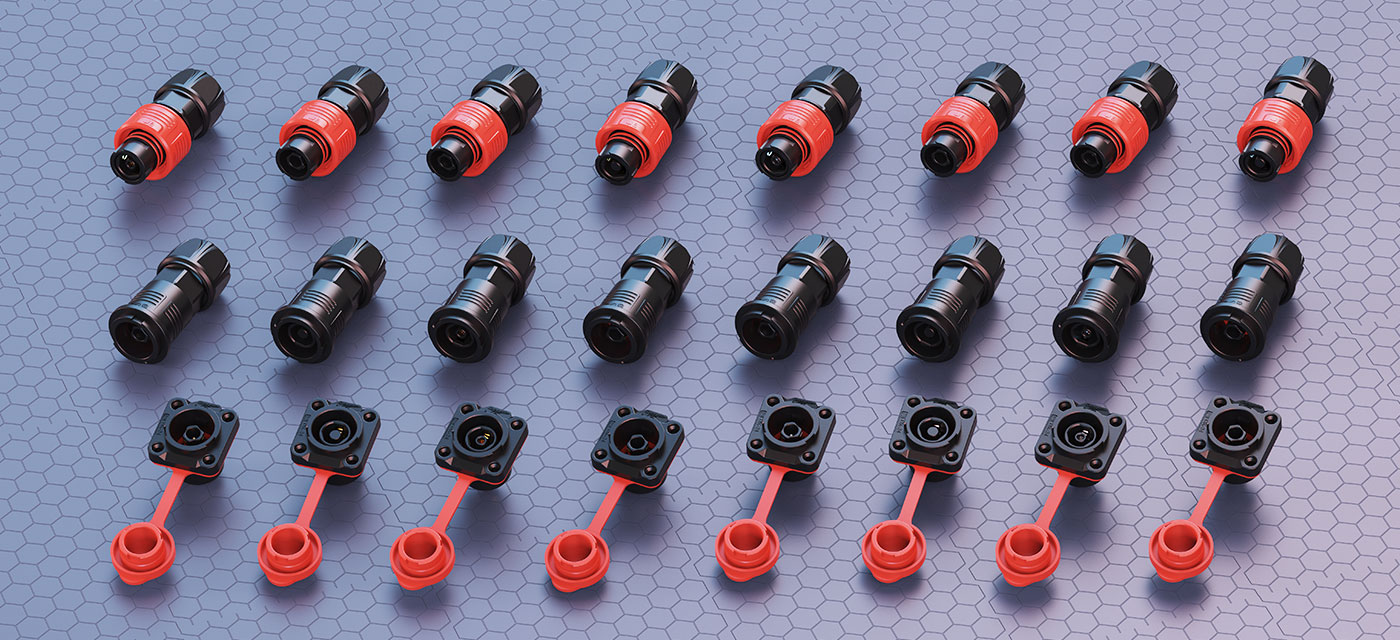

Family Series

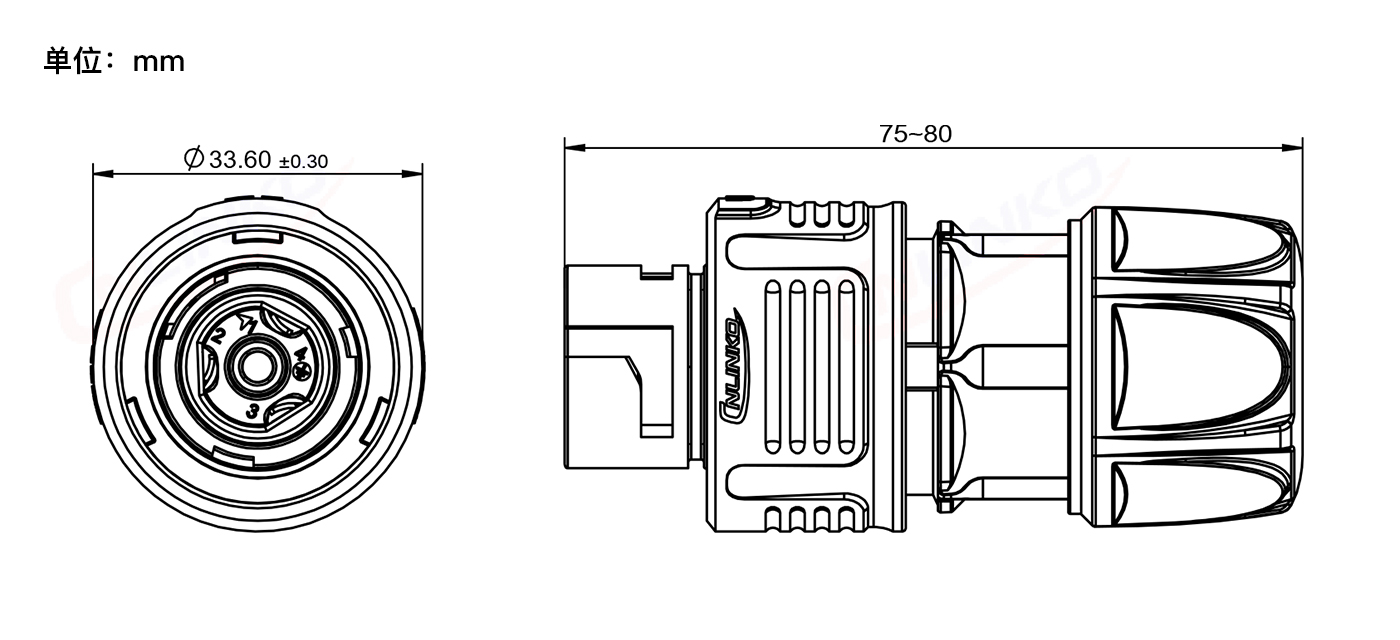

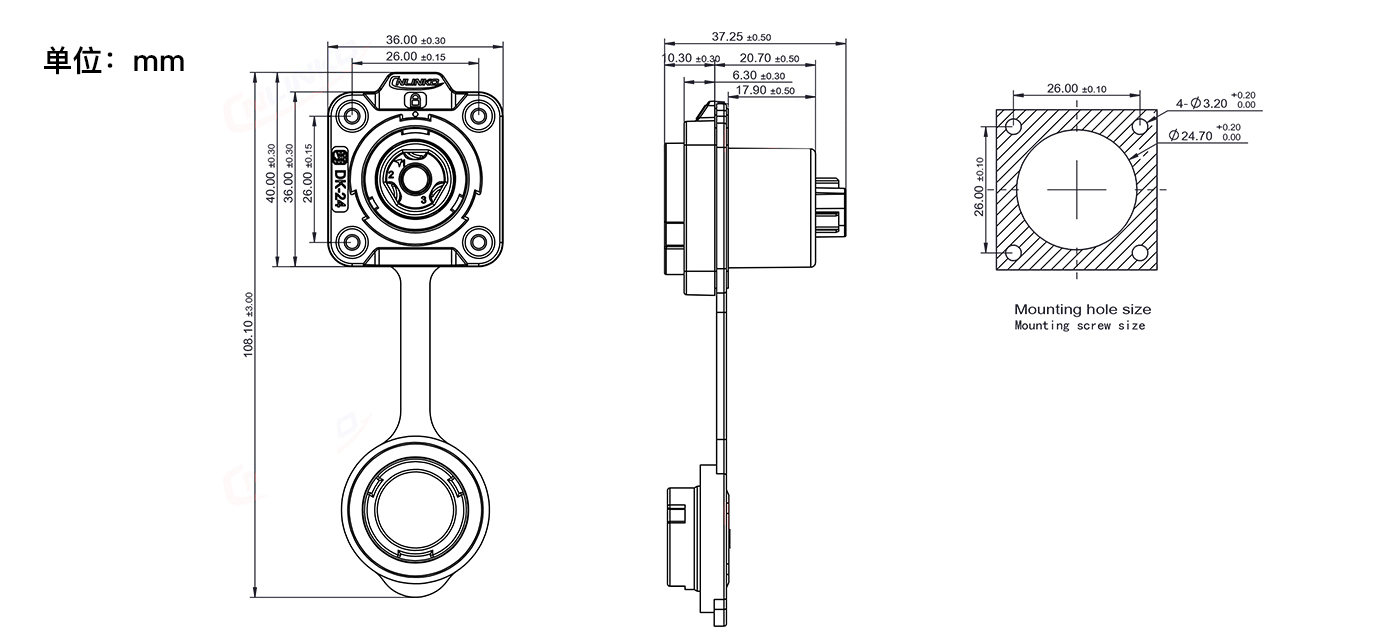

Product Size
Product Details
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
