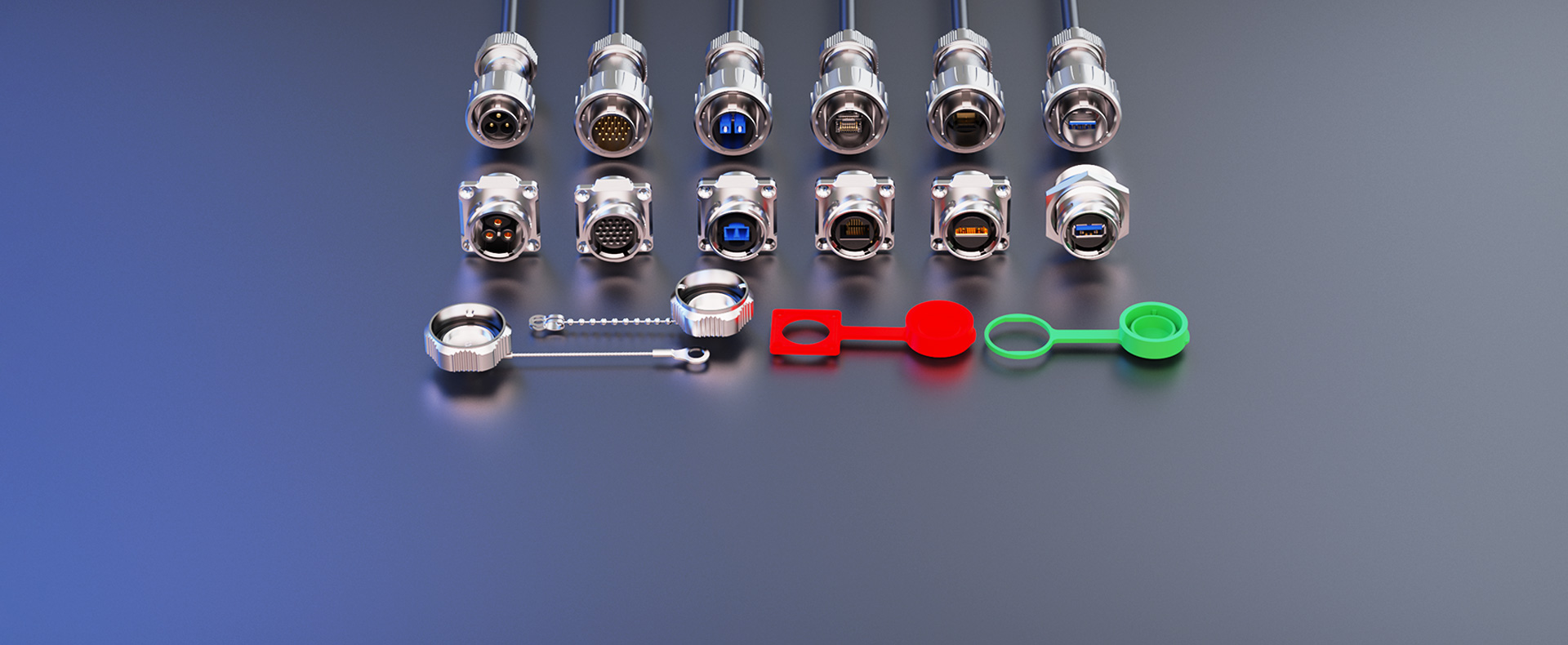

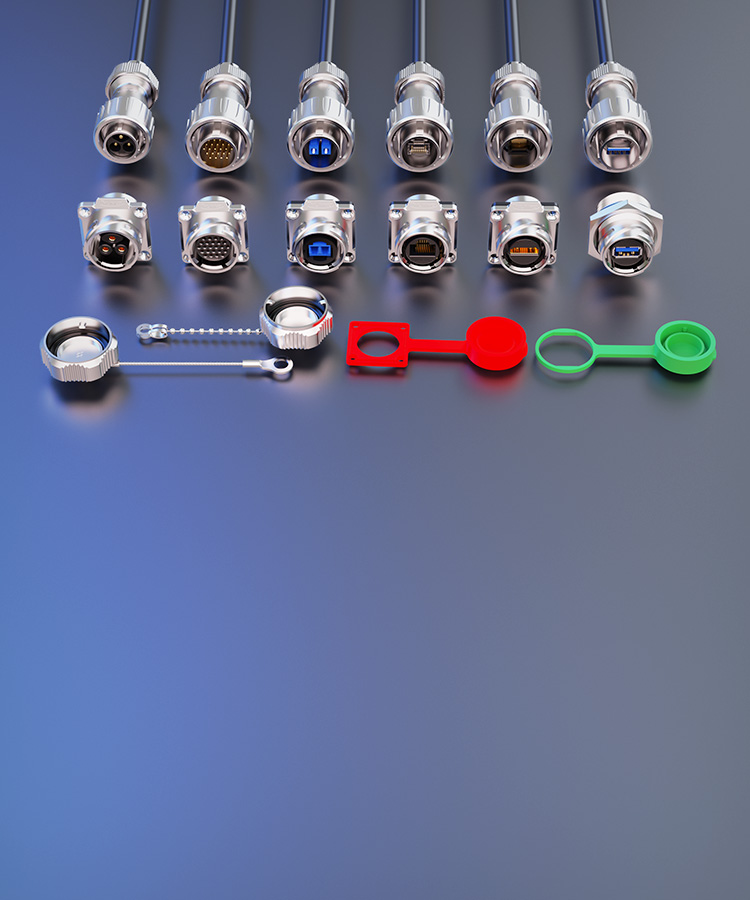

1-首图-电缆组件 手机端-DZ首图-电缆组件

DZ-24-HDMI2.0 Male Plug+Cable+HDMI2.0 Male Plug L=2M_3840X2160_60Hz

Ultra-high definition image transmission | Excellent waterproof function

Video

Product Size

M24

Pin

IP Rating

Rated Current

Rated Voltage

Product Series

Wiring Type

Interface Type

Mating Cycles

Complies with product certification:
UL
TUV
CQC
CE
RoHS
REACH
System certification:
IATF 16949
ISO 13485
ISO 9001
ISO 14001
ISO 50001
ISO 45001
Specifications
DZ24-HDMI-MP-MHD-2M-001
Part Number:DZ24-HDMI-MP-MHD-2M-001 Copy

DZ-24-HDMI2.0 Male Plug+Cable+HDMI2.0 Male Plug L=2M_3840X2160_60Hz

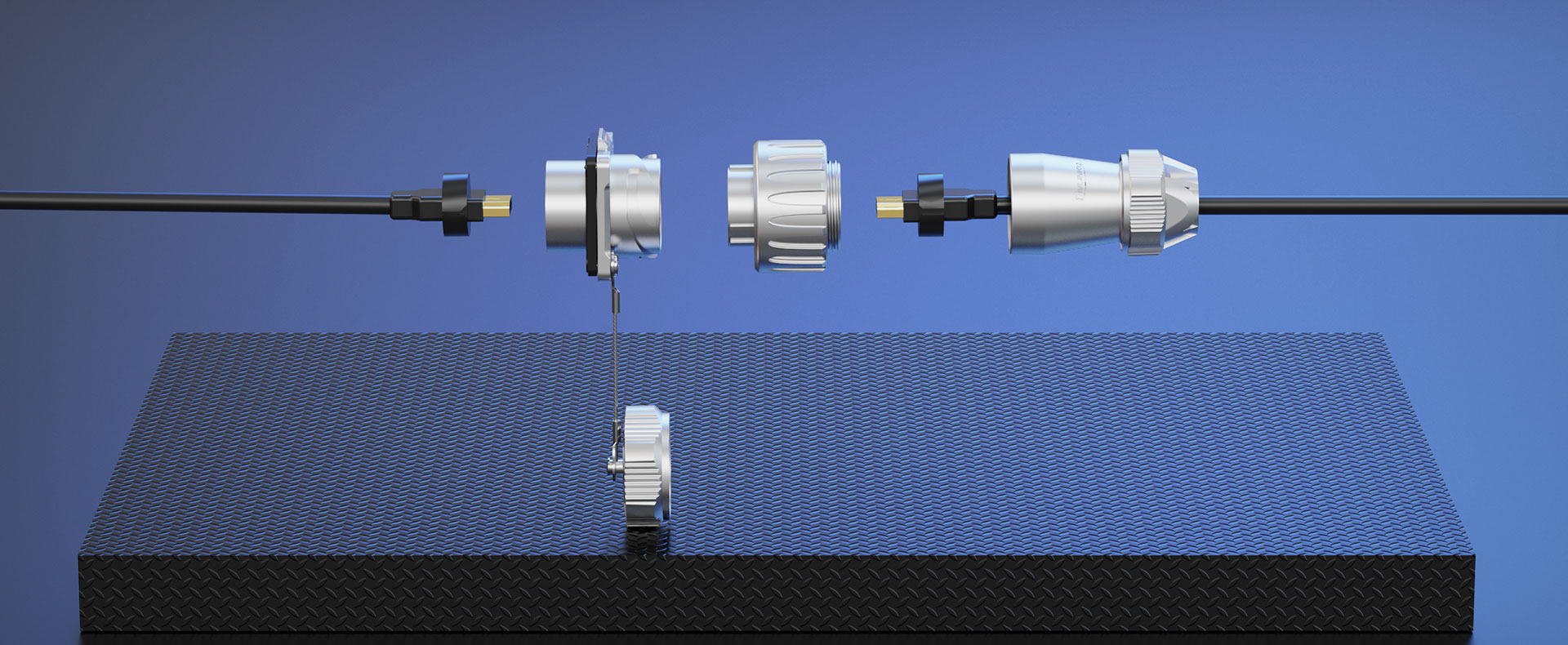

2-爆炸图-HDMI

Perfect combination of precision components, uniquely crafted into a seamless whole

Product Advantage

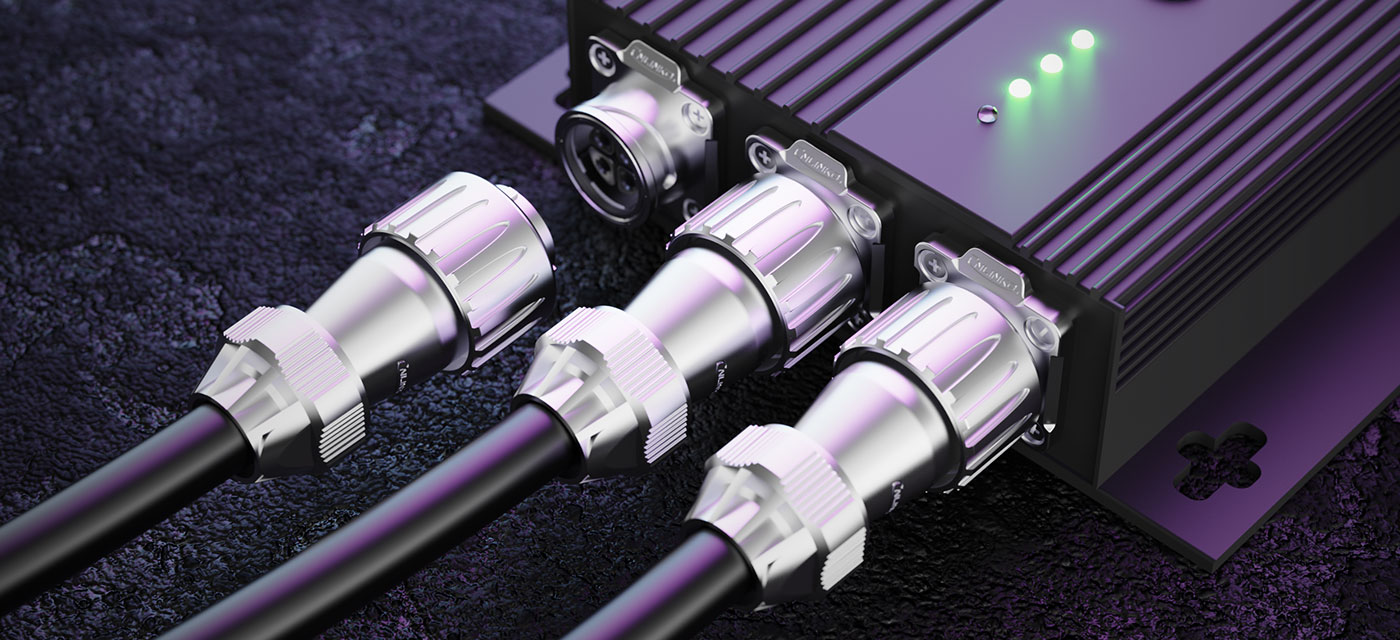

3-优势图 3-优势图
Industrial-grade excellent performance, ultra-clear stable transmission, industrial-grade waterproof, anti-interference performance

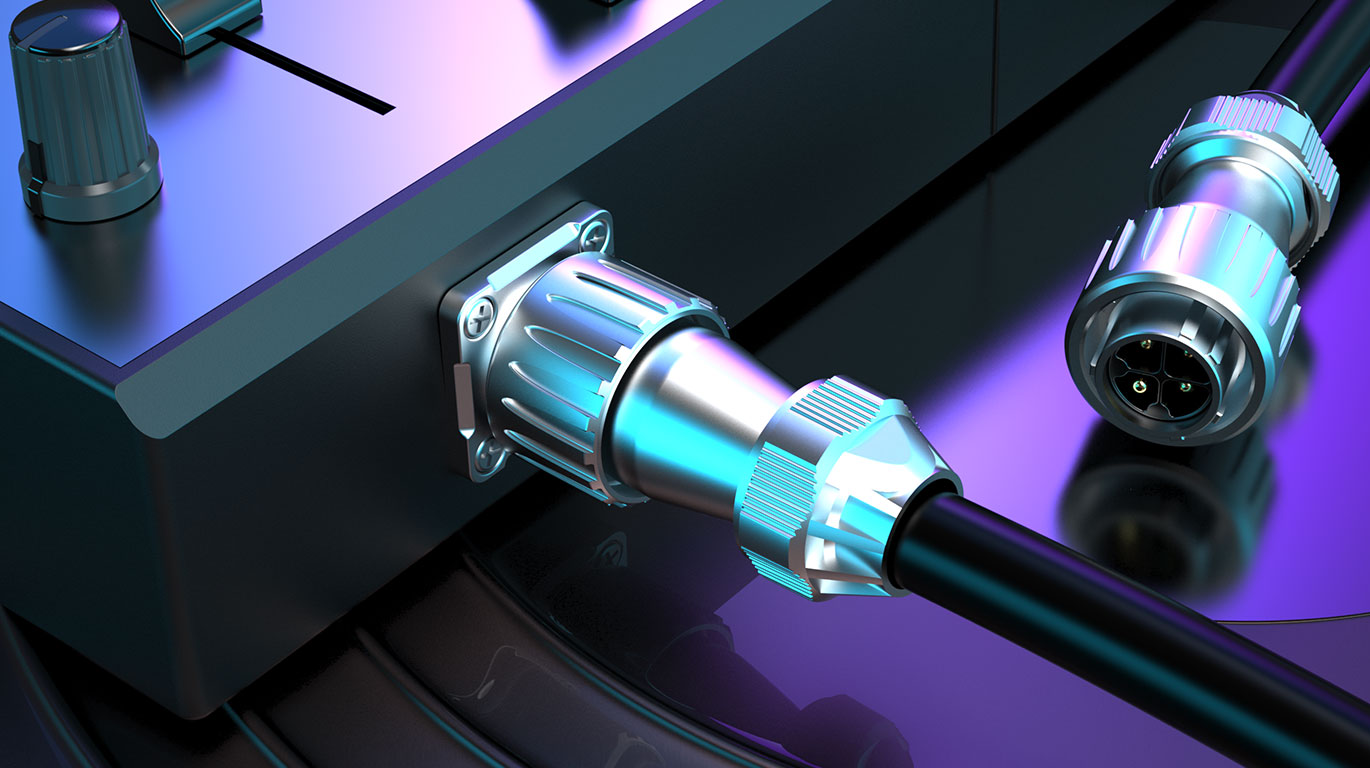

4-特点图

Dual waterproof and dustproof all-around design

Unaffected by wind and rain, performs well in harsh indoor and outdoor environments. Enhanced protection when closed

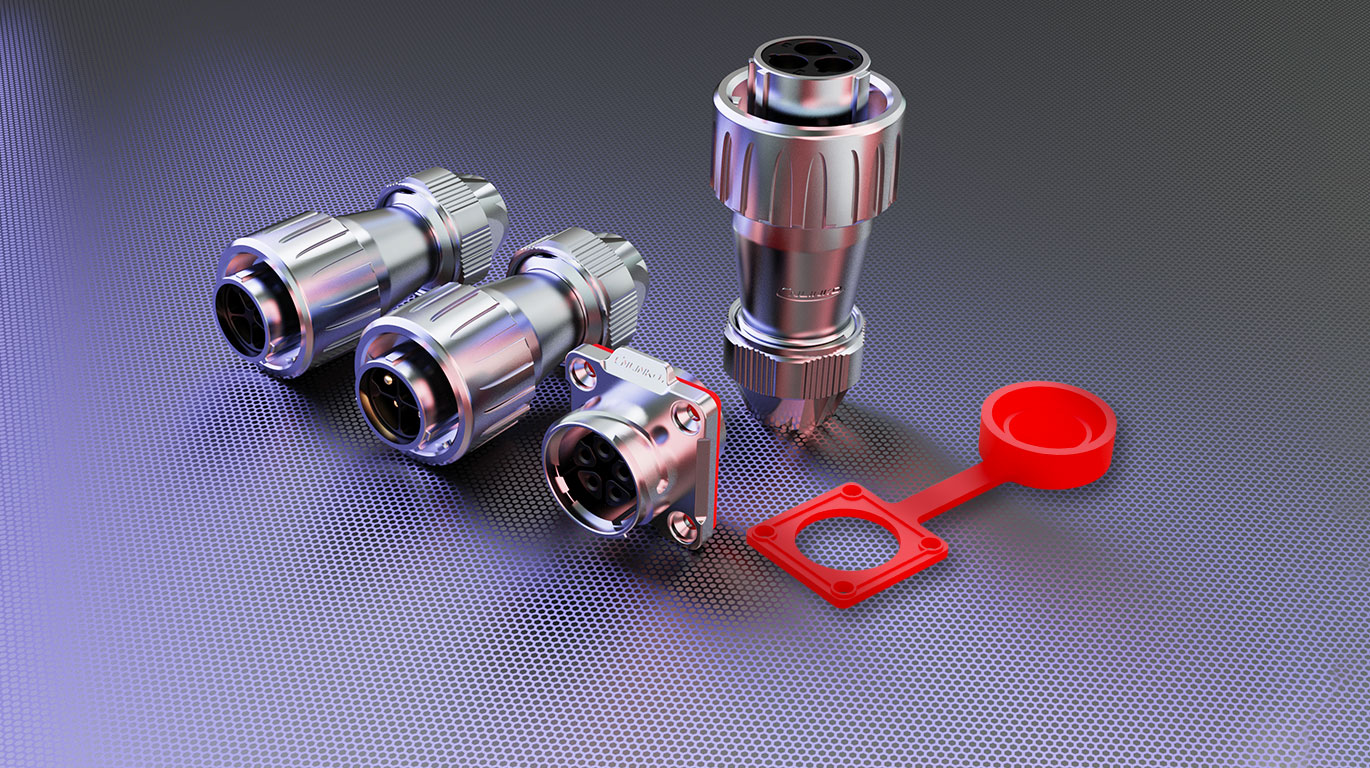

5-特点图

2000 insertion/extraction cycles, far beyond the typical 500 cycle standard

This connector, following technical operating procedures, underwent 2000 mating/unmating cycles in UL/TUV authorized laboratories. Electrical performance remained essentially unchanged, meeting standard requirements

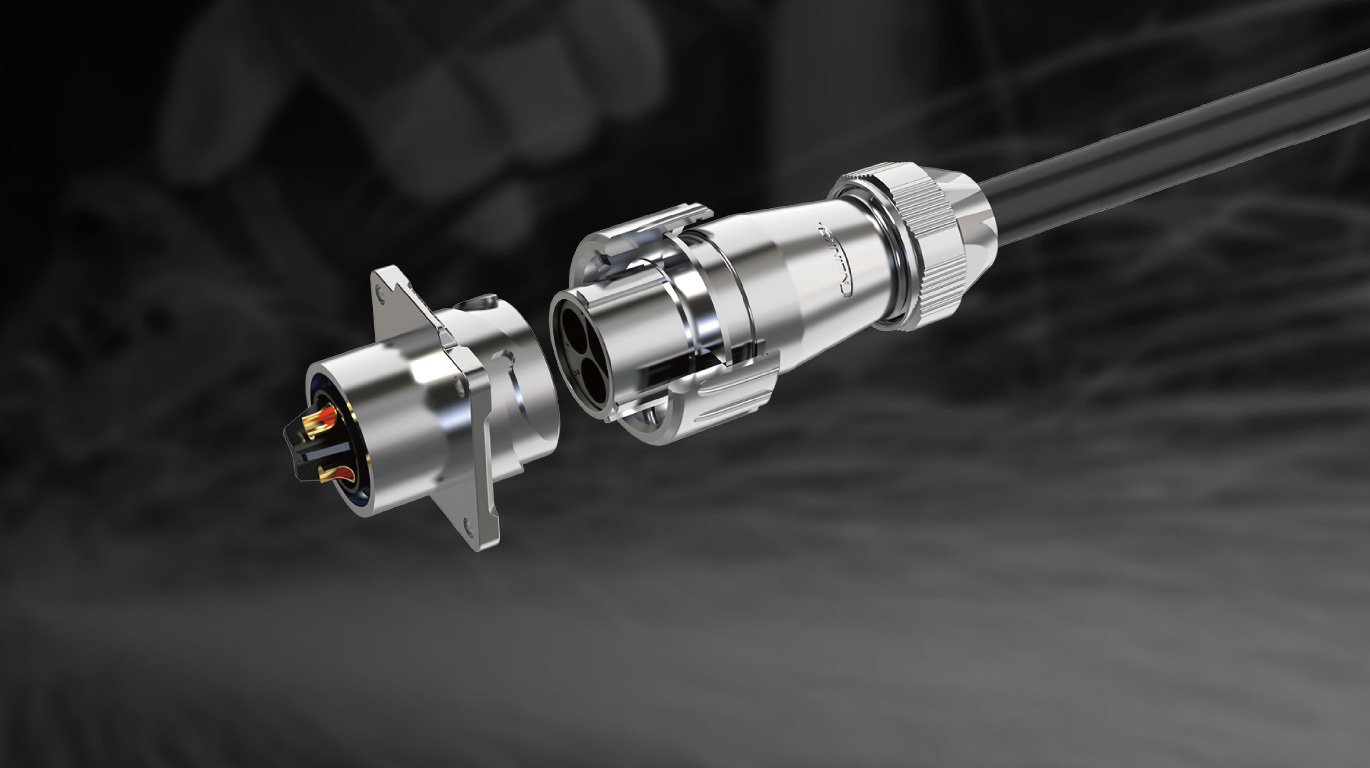

6-特点图

Three-point threaded locking design

Wave spring knob design, outer ring detents engage with socket latches for easy and convenient plug/socket connection, uniform mating force, and stable current and signal transmission

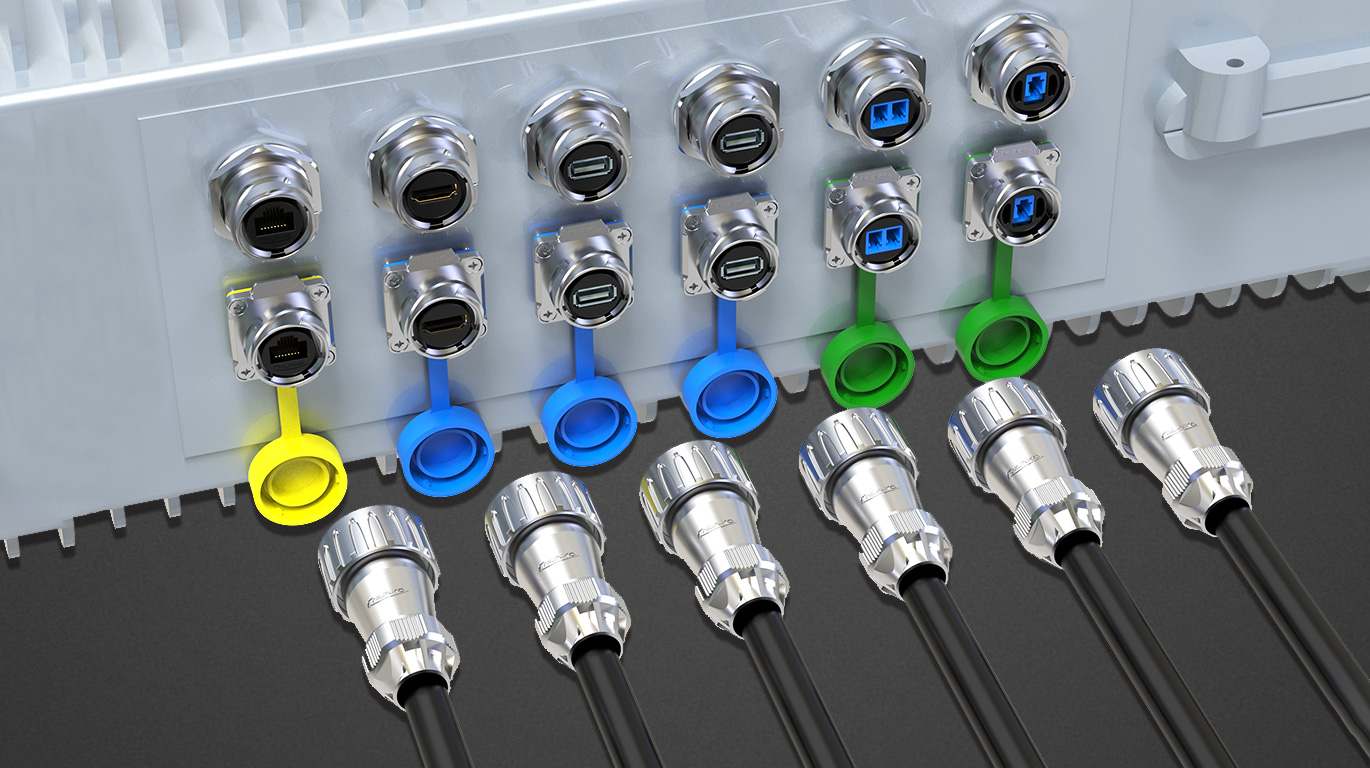

7-特点图

Eco-friendly electroplating, focused on both quality and environmental responsibility

CNLINKO upholds environmental principles, selecting "green enterprise" certified electroplating suppliers to ensure all CNLINKO electroplated components are produced with eco-friendly processes

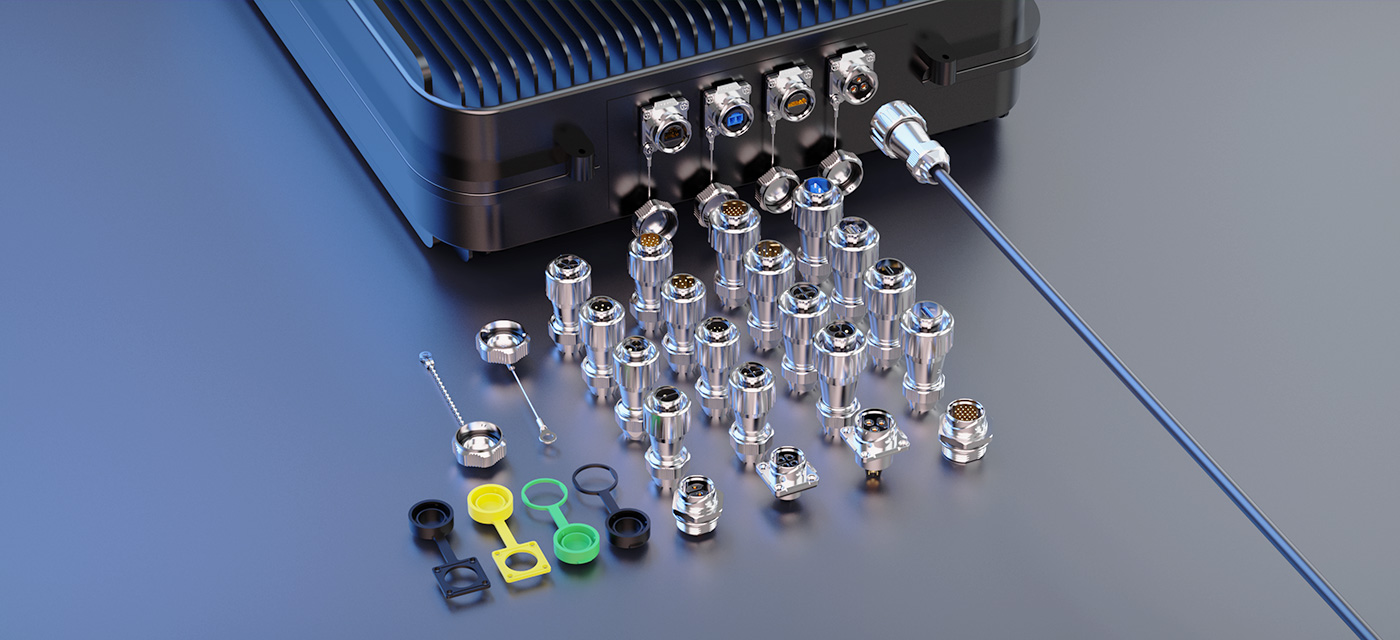

Family series

8-家族图

Product Dimension

Product Parameter

Model: DH-24 Pin: HDMI
IP Rating: IP68 / IPX9K Rated Current: 0.5A
Rated Voltage: 5V AC Withstand Voltage:
/
Contact Resistance Max: / Insulation Resistance Min: ≥500mΩ
Contacts: / Durability:
≥500 times
Wire Spec Max:
26AWG
Wire range: /
Wiring method: Direct-through Maximum temperature rise: 0.Temperature rise below 30K at 5A
Work Temperature: -40°C~+85°C

Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
