Where Are the Advantages of 90° Elbow Connectors? Original Patents Add Extra Value
Background Introduction
There are curves and straight lines, and connectors are no exception. 90° connectors are clearly used for corner wiring. So what exactly are their advantages? Faced with the myriad of 90° elbow connectors on the market, do you feel at a loss? This original, quick-assembly, high-quality 90° connector deserves your attention.
What Are the Advantages of 90° Elbow Connectors?
01. Ultra-Convenient Corner Wiring
When industrial wiring and equipment installation require vertical turns, 90° elbow connectors are the most direct and efficient solution—enabling not only fast wiring but also neat and aesthetic cabling.
02. Saves Installation Space, Resolving Spatial Challenges
In space-constrained areas (e.g., inside equipment or behind cabinets), 90° elbow connectors are one of the most space-saving solutions for achieving turns while avoiding interference with lateral moving components.
03. Protects Cables, Eliminating Bend-Related Damage
90° elbow wiring ensures cables bend at angles no smaller than their minimum bend radius, preventing damage to internal conductors or fibers from over-bending. This is especially critical for less flexible cables.

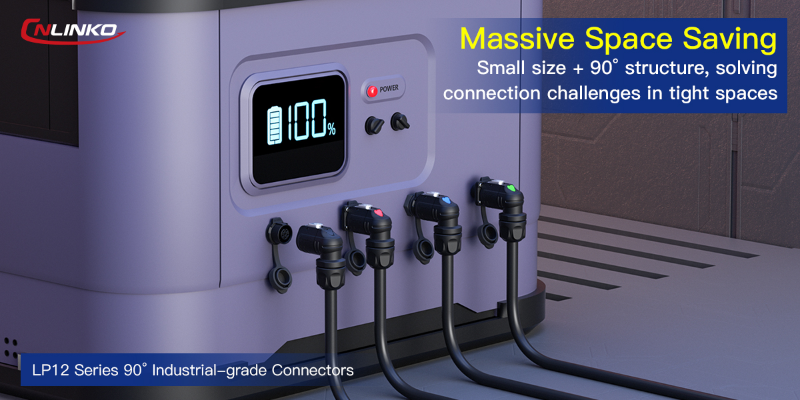

Star Product: Space-Saving LP12 Series 90° Connector
CNLINKO LP12 Series 90° Industrial Connector is a newly launched compact 90° elbow connector. Independently developed by CNLINKO, it integrates space-saving design, IP68/IPX9K waterproofing, quick wiring, 2000+ mating cycles, and visual management—making it a model solution for compact-space installation and wiring.
Key Features:

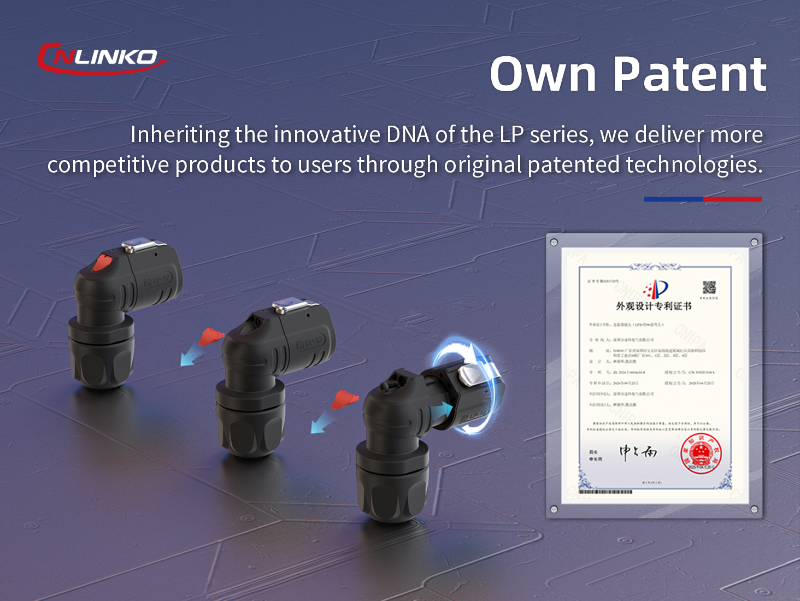

①Holds multiple domestic/international design patents and utility patents (e.g., A Quickly Assembled 90° Waterproof Connector), providing users with original competitive advantages.

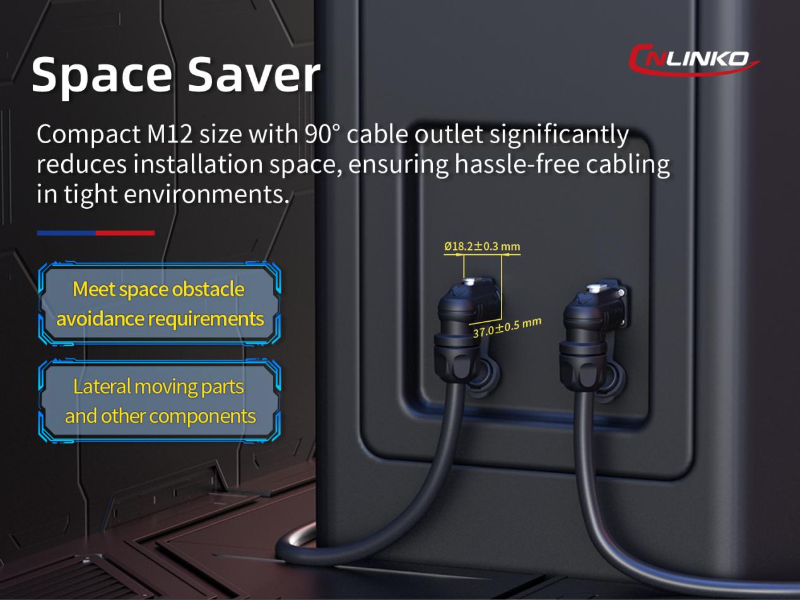

② Combines M12 compact size with a 90° elbow structure to maximize space-saving efficiency.

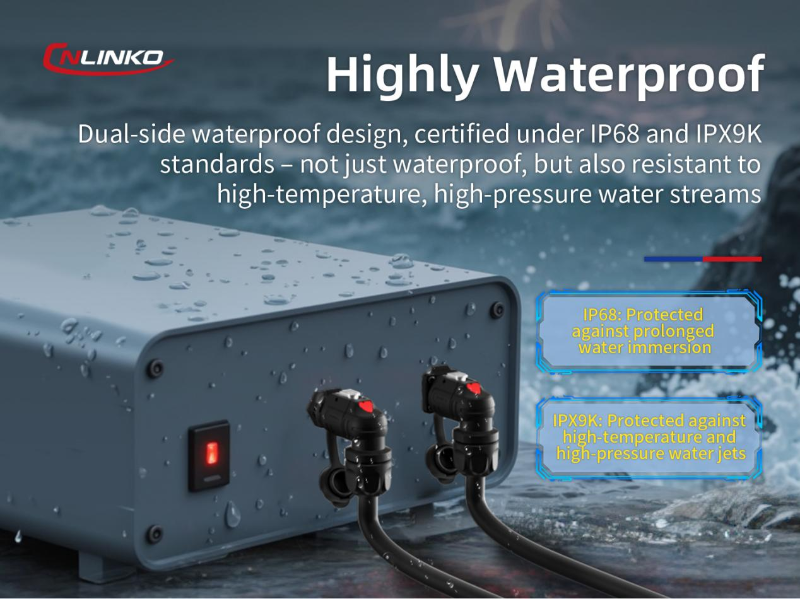

③ Features IP68/IPX9K waterproofing, effortlessly handling high-temperature/pressure water environments.
④ Proprietary quick-assembly structure significantly improves installation/disassembly efficiency.
⑤ Modular design allows customization/delivery by swapping contact modules (3-12 pins).
⑥ 2000+ mating cycles far exceed industry standards, ensuring longevity and stable performance.
⑦ Multiple color options enable visual management—eliminating labeling hassles.
